Description

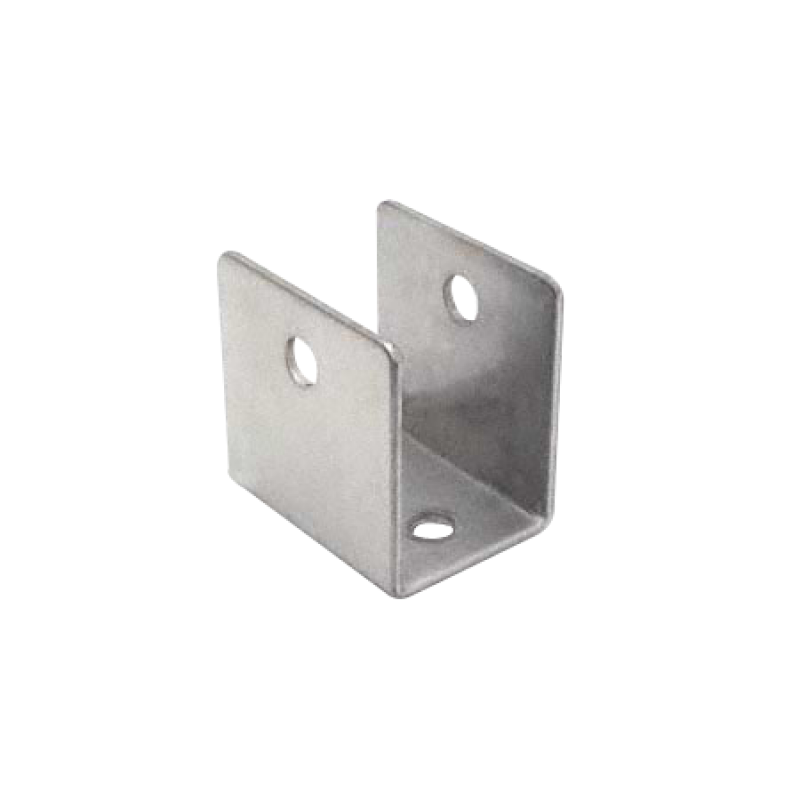

Stamped stainless steel U bracket for 7/8-inch-thick commercial restroom partition material. Model 0190 can be matched to your existing toilet stall hardware by panel thickness, bracket dimensions, and mounting hole placement.
What is included
Includes a set of 8 U brackets with security 6-lobe mounting fasteners.

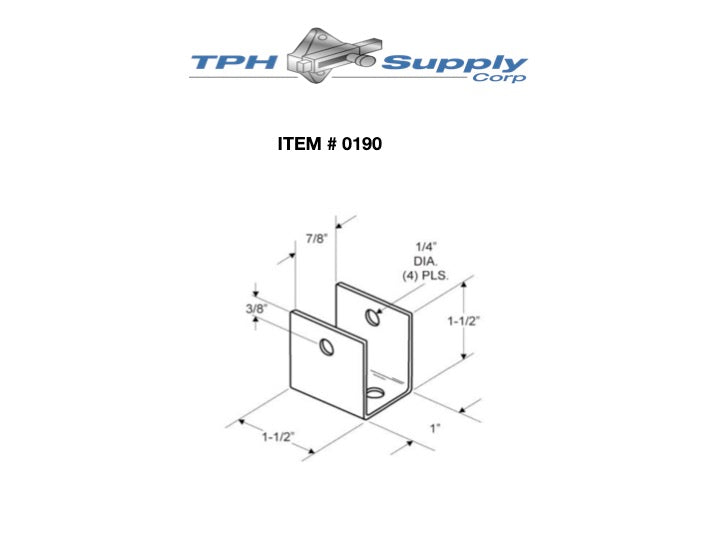

Specifications
- Model: 0190
- Material: Stamped stainless steel
- Fits partition material: 7/8 inch thick
- Bracket height: 1-1/2 inches
- Base width: 1 inches
- Steel gauge: 14 gauge
- Bracket quantity: 8 brackets
Check the fit before ordering
Measure your partition material and compare the bracket dimensions and mounting hole locations with your existing hardware. Match the material thickness listed above to your panel or pilaster thickness.
Typical installation
U brackets commonly connect the edge of a restroom partition panel to the rear face of a front pilaster. The bracket base attaches to the pilaster and its two sides capture the panel edge. Use the partition manufacturer's layout for bracket positions and spacing.
Moisture suitability
Stainless steel offers corrosion resistance for humid indoor restroom environments and occasional splashing. For shower areas, repeated soaking, poolside use, salt exposure, or strong cleaning chemicals, contact TPH Supply to confirm the appropriate stainless grade and fasteners for your application. Rinse away cleaner residue and dry the hardware after cleaning; avoid chloride-containing or acid cleaners.
