Description

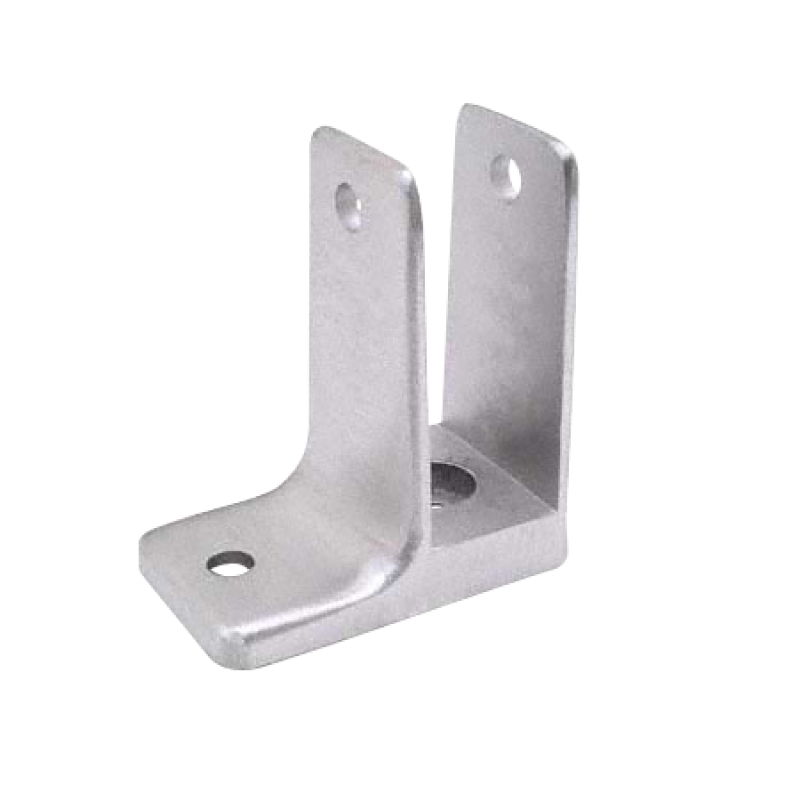

Secure compatible 3/4″ restroom partition panels to a wall with the 4164 cast stainless steel one-ear wall bracket. Its panel-receiving channel supports the panel connection, while the extended mounting ear provides attachment to the wall.
Use this bracket when replacing an existing matching wall bracket or planning a compatible panel-to-wall installation.
One-Ear Wall Connection
The one-ear design places the extended wall-mounting flange on one side of the panel channel. This helps keep the mounting arrangement compact and allows the ear to be positioned on the inside of the stall where appropriate.
Applications include restroom partition panel-to-wall connections and compatible urinal-screen wall connections. Confirm that the bracket geometry and mounting arrangement match your installation.
Specifications
| Detail | Specification |
|---|---|
| Part number | 4164 |
| Bracket style | One-ear wall bracket |
| Material | Cast stainless steel |
| Accepted partition thickness | 3/4″ |
| Overall height | 2-1/2″ |
| Base dimensions | 2″ × 1-1/2″ |
| Mounting-hole diameter | 1/4″ |
| Hole locations shown in drawing | Four |
Check Compatibility Before Ordering

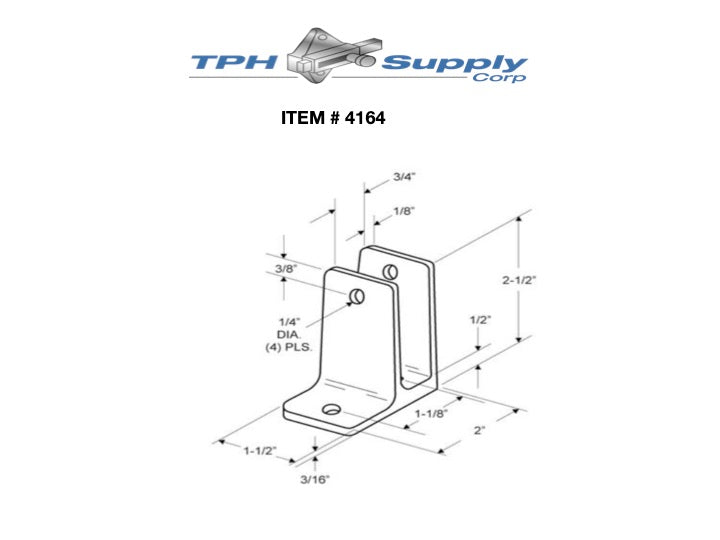

Measure the actual panel thickness and compare your existing bracket with the product photo and dimensional drawing. Check:
-
Panel thickness: The receiving channel is intended for 3/4″ partition material.
-
Bracket dimensions: Confirm the height, base size and available mounting space.
-
Mounting-hole positions: Compare existing holes with the drawing before selecting a replacement.
-
Ear orientation: Check which side of the panel the wall-mounting ear needs to face.
-
Wall connection: Confirm that your wall construction can support the required attachment.
Installation Planning
Position the panel and bracket so the panel is properly aligned before tightening the attachment hardware. Select fasteners and wall anchors appropriate for the panel, wall construction and installation requirements.
Inspect the surrounding panel and wall for damage when replacing an existing bracket.
Need Help Matching Your Bracket?
Email photos of your existing bracket and its installed position to customerservice@tphsupply.com. Include the panel thickness, bracket dimensions and mounting-hole measurements.
You can also call 650-438-6683 for assistance identifying the correct replacement.
