Description

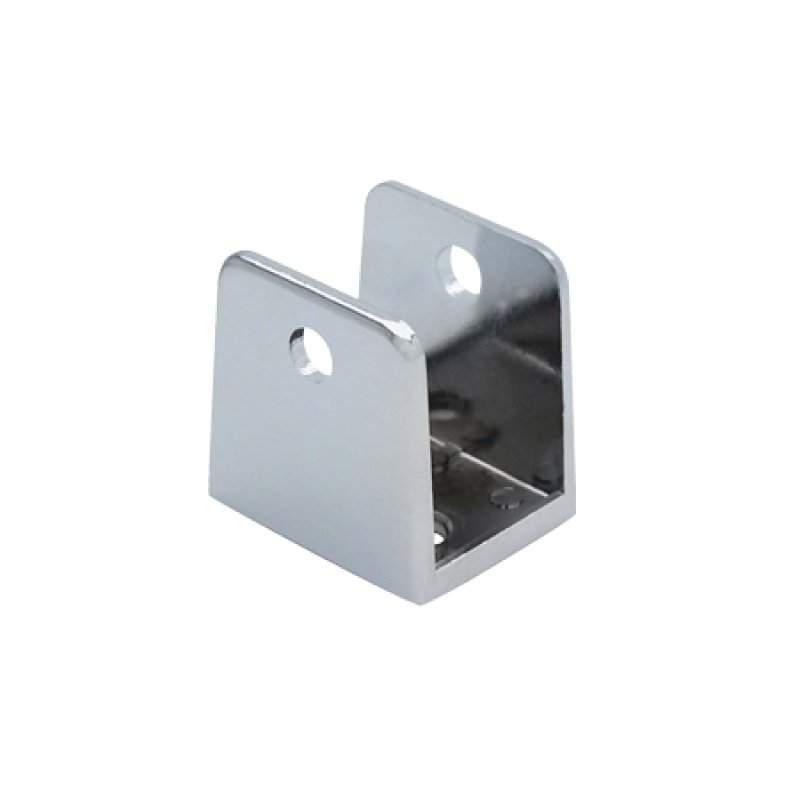

Chrome-plated Zamac U bracket for 7/8-inch-thick commercial restroom partition material. Model 1190 can be matched to your existing toilet stall hardware by panel thickness, bracket dimensions, and mounting hole placement.
What is included
Includes one U bracket with security 6-lobe mounting fasteners.

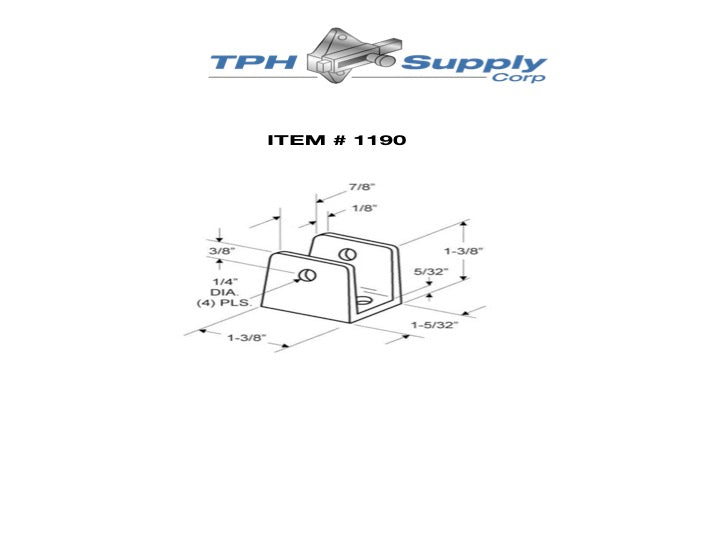

Specifications
- Model: 1190
- Material: Chrome-plated Zamac
- Fits partition material: 7/8 inch thick
- Bracket height: 1-3/8 inches
- Base width: 1-5/32 inches
- Bracket quantity: 1 bracket
Check the fit before ordering
Measure your partition material and compare the bracket dimensions and mounting hole locations with your existing hardware. Match the material thickness listed above to your panel or pilaster thickness.
Typical installation
U brackets commonly connect the edge of a restroom partition panel to the rear face of a front pilaster. The bracket base attaches to the pilaster and its two sides capture the panel edge. Use the partition manufacturer's layout for bracket positions and spacing.
Moisture suitability
For ordinary indoor restroom applications. For shower areas, frequent direct wetting, poolside use, or washdown cleaning, contact TPH Supply to confirm suitability of this chrome-plated Zamac bracket and its mounting fasteners before ordering. Wet-location performance depends on the plating, exposure, and cleaning products.
