Description

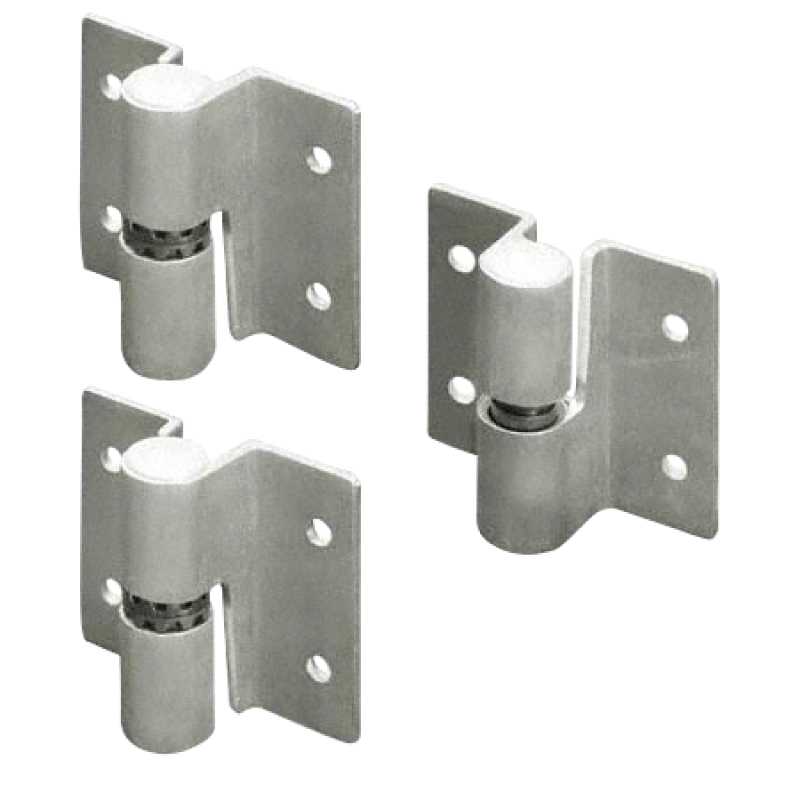

Restore compatible commercial restroom stall doors with the 4756 stainless steel surface-mounted self-closing hinge set. This three-hinge set features a satin finish and is designed for left-hand inswing or right-hand outswing installations.

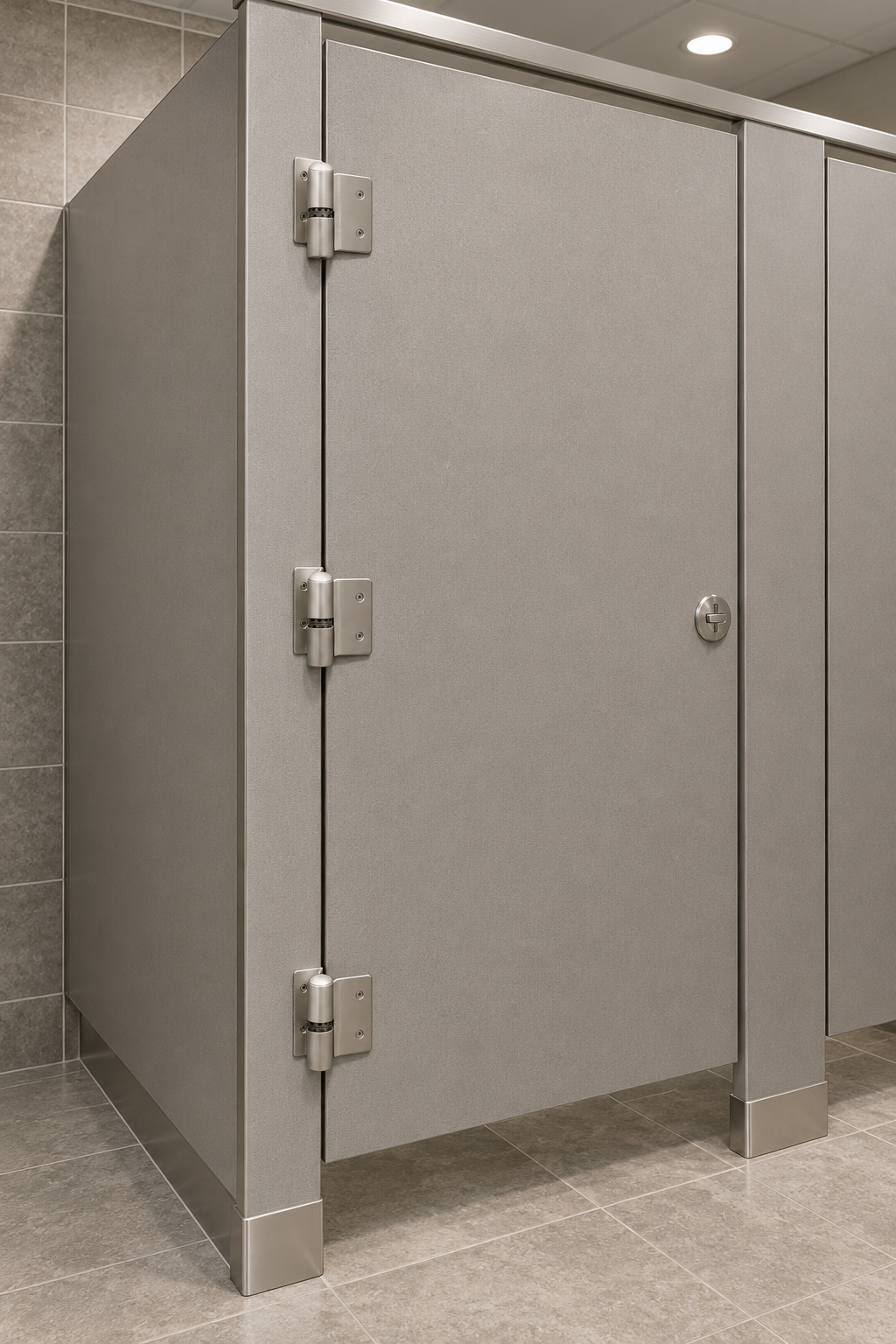

The hinges mount to the faces of the door and pilaster. Their self-closing action helps return the door toward the closed position after use.
Set Contents
-
Two top hinge assemblies with adjustable cams
-
One bottom hinge assembly with a pin retainer ring
-
Three hinges total for one compatible stall door installation

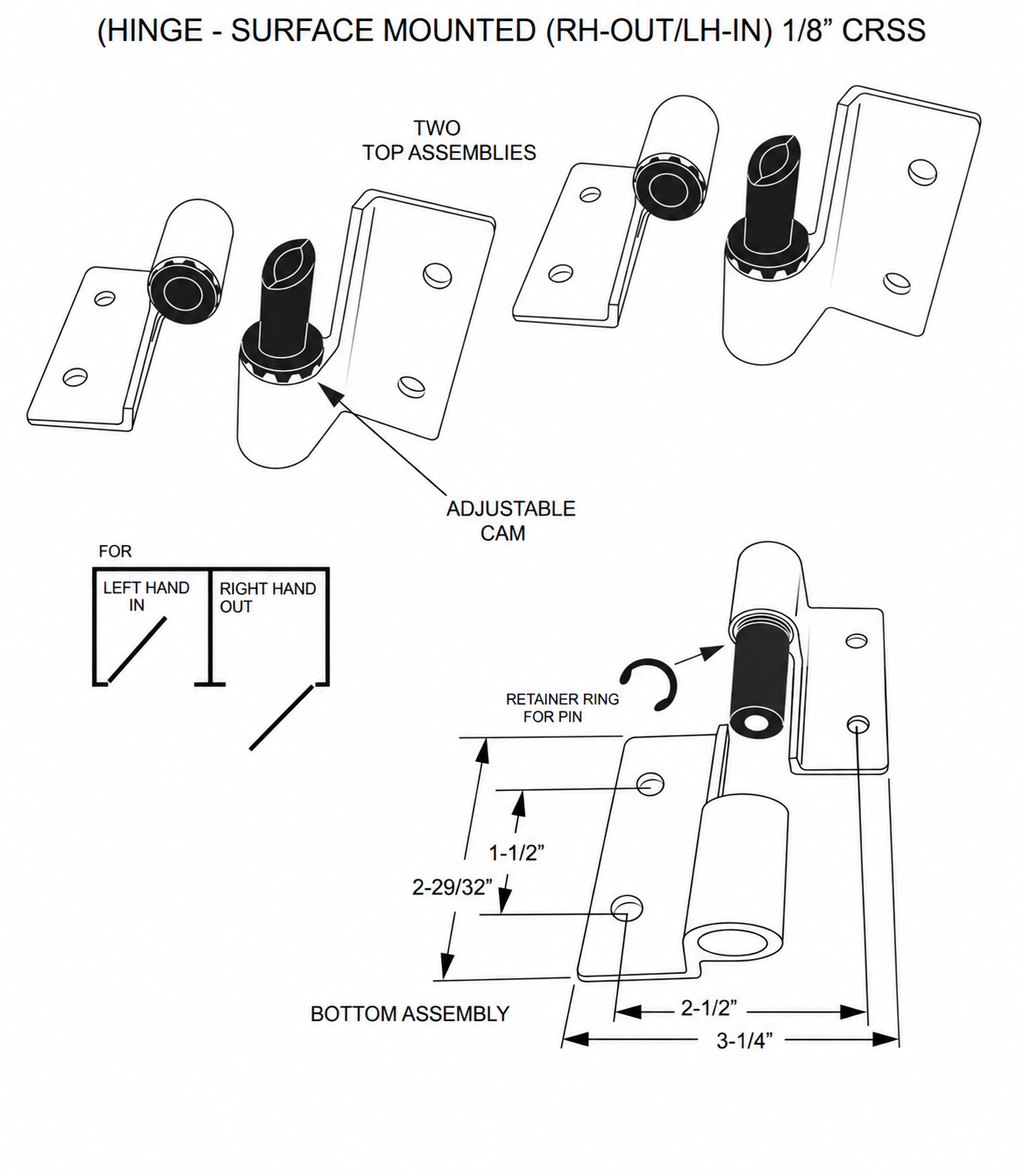

The adjustable cams allow the hinge assemblies to be set for the appropriate door position. Compare the assembly arrangement with the product drawing before installation.
Specifications
| Detail | Specification |
|---|---|
| Part number | 4756 |
| Material | Stainless steel |
| Finish | Satin |
| Mounting style | Surface mounted |
| Operation | Self-closing |
| Quantity | Three-hinge set |
| Material thickness | 1/8″ |
| Overall hinge height shown in drawing | 2-29/32″—approximately 3″ |
| Overall width shown in drawing | 3-1/4″ |
| Vertical mounting-hole centers | 1-1/2″ |
| Horizontal mounting-hole centers shown in drawing | 2-1/2″ |
Door Handing
Select this set for the following configurations:
| Handing | Door Swing |
|---|---|
| Left hand | Inswing |
| Right hand | Outswing |
Confirm both the hinge location and swing direction before ordering. Do not select replacement hinges based on appearance alone.
Check Compatibility Before Ordering
Compare your existing hardware with the product photo and drawing. Check:
-
Mounting-hole spacing, measured from center to center
-
Hinge height, width and leaf shape
-
The relationship between the door and pilaster mounting surfaces
-
Door handing and swing direction
-
The arrangement of the top and bottom hinge assemblies
Matching these details helps you choose hardware that fits your existing installation and avoid unnecessary drilling or returns.
Need Help Identifying Your Hinges?
Email clear photos of your existing hinges and measurements to customerservice@tphsupply.com. Include a photo showing the complete door and explain whether it swings into the stall or outward toward the aisle.
You can also call 650-438-6683 for assistance.
