Description
Replace Worn Surface-Mounted Restroom Partition Hinges

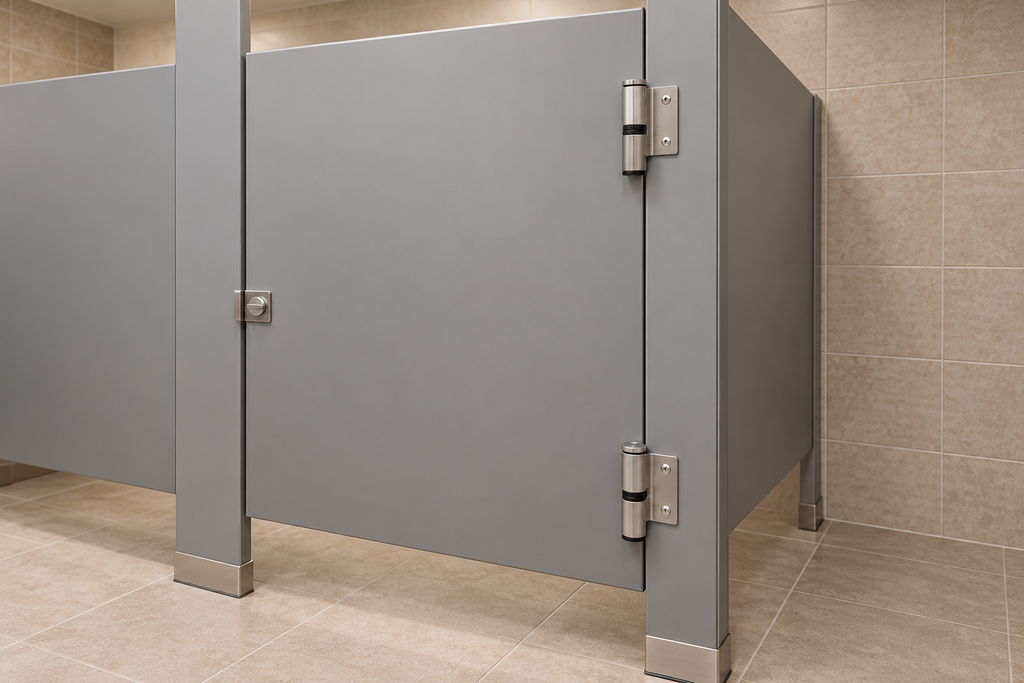

The 0816 stamped stainless steel hinge set connects a compatible restroom stall door to its supporting pilaster. Designed for right-hand inswing or left-hand outswing installations, these surface-mounted hinges feature a satin finish and an adjustable cam.
Each hinge measures 3-3/8″ high and uses 1/8″-thick stainless steel. Compare the handing, mounting pattern, and hinge profile with your existing installation before ordering.
Features and Benefits
-
Stamped stainless steel construction: Substantial 1/8″-thick material for commercial restroom partition applications.
-
Satin finish: A subdued stainless steel appearance that coordinates with other satin restroom hardware.
-
Surface-mounted installation: Hinge leaves attach to the faces of the door and pilaster.
-
Adjustable cam: Provides adjustment within the hinge assembly; refer to the product drawing when identifying the components.
-
Specific handing: Intended for right-hand inswing and left-hand outswing configurations.
-
Two-hinge set: Provides a pair of matching hinges for a compatible stall door.
Specifications
| Detail | Specification |
|---|---|
| Part number | 0816 |
| TPH Supply SKU | H-0816 |
| Product type | Surface-mounted partition door hinge set |
| Quantity | Two hinges |
| Material | Stamped stainless steel |
| Finish | Satin |
| Material thickness | 1/8″ |
| Hinge height | 3-3/8″ |
| Overall width shown in drawing | 3″ |
| Vertical mounting-hole centers | 1-1/2″ |
| Horizontal mounting-hole centers | 2″ |
| Mounting-hole diameter | 1/4″ |
| Barrel diameter | 1-1/16″ |
| Cam | Adjustable |
| Handing | Right-hand inswing / left-hand outswing |
Door Swing Compatibility
| Handing | Compatible Swing |
|---|---|
| Right hand | Inswing |
| Left hand | Outswing |
Use the handing diagram in the product images to compare your installation. Hinge location alone can be misleading when viewed from different sides of the door.
Check These Details Before Ordering
-
Handing and swing: Match the configuration to the product diagram.
-
Mounting-hole spacing: Measure vertically on each leaf and horizontally between the two mounting-hole columns.
-
Hinge profile: Compare the barrel position, leaf shape, and relationship between the door and pilaster surfaces.
-
Door and pilaster thickness: Confirm the appropriate mounting fasteners for both materials.
-
Existing mounting condition: Check for loose fasteners, enlarged holes, or damaged partition material that may need attention during replacement.
A matching finish or similar overall appearance does not establish that two hinge models are interchangeable.
Installation Guidance
Support the door before removing the existing hinges. Position the replacement hinges so their barrels align on a common vertical axis, while maintaining the required door clearances.
After installation and cam adjustment, move the door through its full swing. Check that it operates freely, clears the surrounding partition, and aligns with the latch and keeper without lifting or forcing the door.
Need Help Matching Your Hinges?
Send TPH Supply photos of the existing hinges, the complete door opening, and the mounting-hole measurements. Include the door thickness and a photo showing which direction it swings.
Email: customerservice@tphsupply.com
Phone: 650-438-6683
